SECOND FLOOR / M-02 / CAMBRIDGE, ONTARIO
Fixtures and finishes
Warm beige matte porcelain, pale wood, and matte black fittings. Every metal fitting matches the ensuite family. This list belongs to the second-floor bathroom only.
White toilet and heated seat: owner approval pending. Match the colour and physical fit before purchase.
Canadian product references and prices were checked on 06 Sep 2026. Stock, finish samples and installation requirements need approval before purchase.
Supply allowance / CAD
Partial cost estimate
This is not the full bathroom budget. The total includes conditional tile, fixture and promotional rates. Quote-only items, delivery and installation are extra.
Tax allowance: CRA rates by province. Confirm the final invoice.
| Tag | Product | Quantity | CAD rate | CAD total |
|---|---|---|---|---|
| T01 | Swiss Madison Voltaire 54 x 30 acrylic alcove bathtubSM-AB562 | 1 each | $737.00 | $737.00 |
| V01 | GlucksteinElements Sullivan 24-inch walnut dark wood vanity with a white engineered stone topSullivan 24 | 1 each | $0.00 | $0.00 |
| WC01 | HOROW T10A tankless smart toilet with a heated elongated seatT10A | 1 each | $708.58 | $708.58 |
| F01 | Delta Trinsic wall-mount tub filler set, Champagne BronzeT14059-CZ + RP77350CZ + R10000-UNBX | 1 each | $462.14 | $462.14 |
| P-04 | Delta Trinsic single-hole basin faucet in Champagne Bronze559LF-CZMPU | 1 each | $408.45 | $408.45 |
| A-01 | Delta Trinsic toilet paper holder in Champagne Bronze75950-CZ | 1 each | $94.60 | $94.60 |
| A-02 | Delta Trinsic 24-inch towel bar in Champagne Bronze759240-CZ | 1 each | $113.33 | $113.33 |
| A-03 | Delta Trinsic hand-towel ring in Champagne Bronze759460-CZ | 1 each | $75.88 | $75.88 |
| A-04 | Delta Trinsic robe hook in Champagne Bronze75935-CZ | 1 each | $56.17 | $56.17 |
| C-03 | Venlus brushed gold framed bathroom mirror, 24 x 32B0GT32SPQJ | 1 each | $73.99 | $73.99 |
| T02 | Amboise Beige 24 x 48 matte porcelainCNS24481160 | 16 piece | $30.91 | $494.56 |
| T03 | Suite Vita Beige 12 x 36 relief wall tileF06A5EF041 | 2 box | $92.92 | $185.84 |
| S01 | Neutral quartz remnant window sillRemnant and finish not selected; cut to site template | 1 fabricated sill | Quote required | Quote required |
| L1-L3 | 6-inch round wet-rated LED recessed lightI-CCMDPN6 | 3 each | $34.50 | $103.50 |
| V1 | 22-inch 3-light vanity light in antique brass, goblet glass shades21049 | 1 each | $185.00 | $185.00 |
| G1 + G2 | Black GFCI sockets2097TRBKCCD4 | 2 each | $35.49 | $70.98 |
| D1 + D2 | Solid brass switch plate, 2 gang, aged brass, two rotary dimmers2-gang / Aged Brass / Rotary Dimmer x 2 | 1 each | $85.00 | $85.00 |
| T1 | Solid brass switch plate, 1 gang, aged brass, knurled toggle1-gang / Aged Brass / Knurled Toggle | 1 each | $55.00 | $55.00 |
| EF1 | WhisperCeiling DC exhaust fanFV-0511VQ1 | 1 each | $153.98 | $153.98 |
| WP1 | radiant 1-gang screwless wallplate, BlackRWP26BK | 2 each | $6.99 | $13.98 |
| BL1 + UL1 | Concealed LED set: IP67 COB strip, dimmable driver and channelIP67 COB 3000K 24V + 96W driver + Muzata channel | 1 each | $153.93 | $153.93 |
Tile and stone quantities
The tile covers the full floor and the three walls of the tub alcove. Other walls remain outside this tile allowance.
| Area | Basis | Quantity |
|---|---|---|
| Floor | Source polygon, including below the tub and vanity | 49.19 sq ft |
| Tub alcove walls | 85.8 inches of wall × estimated 96-inch height; no deductions | 57.20 sq ft |
| Area plus waste | 106.39 sq ft × 1.15 | 122.35 sq ft |
| Tile order allowance | Round the pooled quantity to 16 boxes × 7.75 sq ft | 124.00 sq ft |
| Stone | One window sill; 26-inch opening, depth and finished edges unmeasured | 1 fabricated sill, quote required |
The ceiling height is an estimate. Confirm the window height, cuts, waste and stock from one lot before the contractor orders tile.
Quote-only items
The stone sill above and the items below are not part of the priced total.
| Tag | Scope | Quantity | Rate | Total |
|---|---|---|---|---|
| V1 bulbs | Dimmable E26 LED bulbs3000 K and CRI 90 or higher. Confirm fit, the 60 W fixture limit and compatibility with D3. | 3 bulb | Quote required | Not included |
| B1 | Delta 22901-I-BL handheld bidet spray, matte blackWall-mounted beside the toilet. Same spray as the ensuite. Delta lists it in USD 106.70, so it stays out of the CAD subtotal. https://www.deltafaucet.com/international/bath/product/22901-I-BL.html | 1 each | Quote required | Not included |
Product photos and sources
Plumbing
Swiss Madison Voltaire 54 x 30 acrylic alcove bathtub
SM-AB562
54 L × 30 W × 20 H inches
White acrylic, three finished walls, wall-mount faucet
One alcove tub in the existing east alcove. The wall filler is separate.
The page product data reads stockLevelStatus inStock and stockLevel 5. Only five units. Confirm Cambridge stock and delivery. Price snapshot: 2026-09-06.
Listed package
- Acrylic alcove tub with three finished walls
HOROW T10A tankless smart toilet with a heated elongated seat
T10A
Horow Canada publishes a 12-inch rough-in and a 17.3-inch ADA seat height, and nothing else. The length and the width carried here are the reservation the plan already used, NOT published product figures. Read the T10A specification sheet before you set the flange.
White, tankless, skirted, with a heated elongated seat
One tankless smart toilet on the existing west-wall flange. Its heated seat is built in. G2 powers it.
Horow Canada lists this model as SOLD OUT. Ask Horow for a restock date, or pick a substitute, before you rely on this line. Price snapshot: 2026-09-06.
Listed package
- Tankless smart toilet
- Heated elongated seat
- Dual flush with hands-free automatic flushing
- Backup flush that works during a power outage
Delta Trinsic wall-mount tub filler set, Champagne Bronze
T14059-CZ + RP77350CZ + R10000-UNBX
Valve trim 8 3/4 L x 8 1/2 W x 4 1/4 H inches; non-diverter tub spout 9 3/4 L x 4 W x 4 H inches
Champagne Bronze
One wall-mounted tub filler on the alcove head wall: Trinsic Monitor 14 Series valve trim, Trinsic non-diverter tub spout, and the universal rough-in valve body.
Splashes lists 8 valve trims and 6 tub spouts available for immediate shipping. Confirm all three parts at order. Price snapshot: 2026-09-06.
Listed package
- T14059-CZ Trinsic Monitor 14 Series valve trim, Champagne Bronze, CAD 278.53
- RP77350CZ Trinsic non-diverter tub spout, Champagne Bronze, CAD 119.99
- R10000-UNBX universal rough-in valve, single box, CAD 63.62
Delta Trinsic single-hole basin faucet in Champagne Bronze
559LF-CZMPU
The faucet fits one hole or three holes on 4-inch centres.
Champagne Bronze
One basin faucet on the V01 vanity.
In stock at Plumbing Market Canada. Price snapshot: 2026-09-06.
Listed package
- 559LF-CZMPU, CAD 408.45
Storage
GlucksteinElements Sullivan 24-inch walnut dark wood vanity with a white engineered stone top
Sullivan 24
24 W × 19 D inches; height unconfirmed
Spiced walnut dark wood with a white engineered stone top and a removable backsplash
One vanity on the existing west-wall waste, in the northwest corner. Its price is unread, so it counts as zero in every total.
Not checked. Confirm Cambridge stock and delivery. Price snapshot: 2026-09-06.
Listed package
- Vanity cabinet with soft-close drawers
- White engineered stone top with a removable backsplash
- Rectangular undermount sink with overflow
Surfaces
Amboise Beige 24 x 48 matte porcelain
CNS24481160
24 x 48 inches; 7.75 sq ft per piece
Warm sand greige, matte, rectified, R10
Room floor, the east wall along the tub, and the south wall at the tub foot. Net 105.19 sq ft, 120.97 sq ft with 15 percent waste.
In stock at The Tile Shoppe. Pickup at Mississauga ready in 24 hours. Order the second-floor pieces from the same lot as the ensuite. Price snapshot: 2026-09-06.
Listed package
- 16 pieces at CAD 30.91 each, CAD 494.56 before tax and delivery
Suite Vita Beige 12 x 36 relief wall tile
F06A5EF041
12 x 36 inches; 11.63 sq ft per box
Beige terrazzo look with parallel grooves, matte, V3 shade variation
The tub alcove head wall only. Net 20.00 sq ft, 23.00 sq ft with 15 percent waste.
Source Flooring lists the tile by the box. Confirm stock and lot. Price snapshot: 2026-09-06.
Listed package
- 2 boxes at CAD 92.92 each, CAD 185.84 before tax and delivery
Neutral quartz remnant window sill
Remnant and finish not selected; cut to site template
24.9-inch source window opening; final sill width, depth and thickness by template
Cream or beige sample to approve, to match the ensuite stone
One window sill at W1. The ensuite uses the same supplier and the same neutral quartz remnant.
Remnant stock changes weekly. Cava Granite quotes on a site template. Price snapshot: 2026-09-06.
Electrical
6-inch round wet-rated LED recessed light
I-CCMDPN6
6-inch round recessed kit; confirm the cutout
White trim, interchangeable
One recessed light above the tub and two general recessed lights. Select 3000 K.
Home Depot Canada listing, checked 06 Sep 2026. Confirm three units and Cambridge delivery. Price snapshot: 2026-09-06.
22-inch 3-light vanity light in antique brass, goblet glass shades
21049
22 inches wide, three lights
Antique brass with clear goblet glass shades
One task light above the west-wall mirror. Three dimmable 3000 K bulbs are separate.
Home Depot Canada listing, checked 06 Sep 2026. Price snapshot: 2026-09-06.
Black GFCI sockets
2097TRBKCCD4
Standard 1-gang GFCI
Black
One GFCI beside the vanity and one behind WC01 for the tankless smart toilet.
Canadian supplier listing, checked 06 Sep 2026. Price snapshot: 2026-09-05.
Solid brass switch plate, 2 gang, aged brass, two rotary dimmers
2-gang / Aged Brass / Rotary Dimmer x 2
2-gang solid brass plate with two rotary dimmers
Aged brass
One 2-gang aged brass rotary dimmer plate for the recessed lights and the vanity light.
Supplier listing, checked 06 Sep 2026. Price snapshot: 2026-09-06.
Solid brass switch plate, 1 gang, aged brass, knurled toggle
1-gang / Aged Brass / Knurled Toggle
1-gang solid brass plate with a knurled toggle
Aged brass
One switch for the exhaust fan.
Supplier listing, checked 06 Sep 2026. Price snapshot: 2026-09-06.

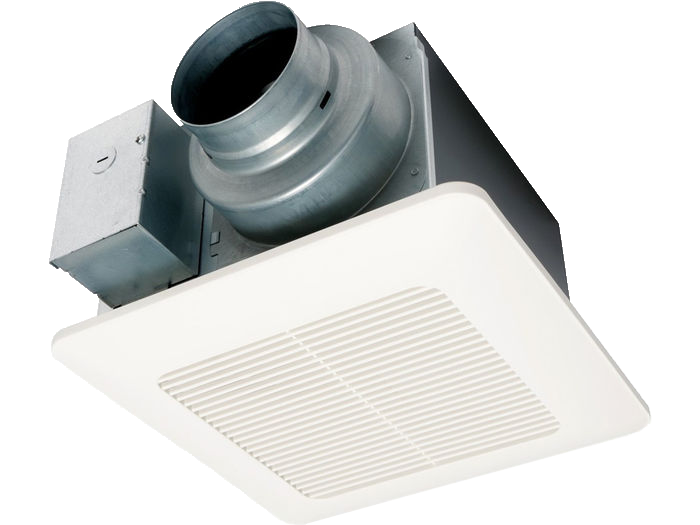

WhisperCeiling DC exhaust fan
FV-0511VQ1
FV-0511VQ1 ceiling fan
White ceiling grille
One exhaust fan. Duct to outside.
Supplier listing, checked 06 Sep 2026. Price snapshot: 2026-09-05.
radiant 1-gang screwless wallplate, Black
RWP26BK
1-gang screwless wallplate
Black
One plate for each GFCI socket.
Supplier listing, checked 06 Sep 2026. Price snapshot: 2026-09-05.
Concealed LED set: IP67 COB strip, dimmable driver and channel
IP67 COB 3000K 24V + 96W driver + Muzata channel
Cut to length behind the mirror and below the vanity
3000 K IP67 COB strip with a dimmable driver and channel
Concealed LED behind the mirror and below the vanity.
Supplier listing, checked 06 Sep 2026. Price snapshot: 2026-09-06.
Accessories
Delta Trinsic toilet paper holder in Champagne Bronze
75950-CZ
Champagne Bronze
One paper holder near WC01.
In stock at Plumbing Market Canada. Price snapshot: 2026-09-06.
Listed package
- 75950-CZ, CAD 94.6
Delta Trinsic 24-inch towel bar in Champagne Bronze
759240-CZ
The supplier lists a 24-inch bar and an overall width of 26.25 inches.
Champagne Bronze
One towel bar.
In stock at Plumbing Market Canada. Price snapshot: 2026-09-06.
Listed package
- 759240-CZ, CAD 113.33
Delta Trinsic hand-towel ring in Champagne Bronze
759460-CZ
Champagne Bronze
One hand-towel ring beside V01.
In stock at Plumbing Market Canada. Price snapshot: 2026-09-06.
Listed package
- 759460-CZ, CAD 75.88
Delta Trinsic robe hook in Champagne Bronze
75935-CZ
Champagne Bronze
One robe hook.
In stock at Plumbing Market Canada. Price snapshot: 2026-09-06.
Listed package
- 75935-CZ, CAD 56.17
Venlus brushed gold framed bathroom mirror, 24 x 32
B0GT32SPQJ
24 by 32 inches.
Brushed gold
One mirror on the west wall above V01.
Price snapshot: 2026-09-06.
Listed package
- B0GT32SPQJ, CAD 73.99
Scope limits
- Labour, permits, demolition, plumbing relocation and electrical work.
- Construction materials, including framing, boards, waterproofing, adhesive, grout, wire, boxes and ductwork.
- Paint, the entry door and structural work.
- Freight, fabrication charges not included in a quote, and any product accessories absent from the listed package.
WC01 is the HOROW T10A, the same tankless smart toilet the ensuite uses. Horow Canada lists it as sold out, and it does not publish the footprint, so confirm both before purchase. Its heated seat is built in, so G2 powers the toilet itself.
The V01 vanity price was never read: homedepot.ca does not answer requests from this machine. No total on this page includes a vanity price.
Product dimensions do not automatically revise A-02. The mirror and any different filler require a fit check.
